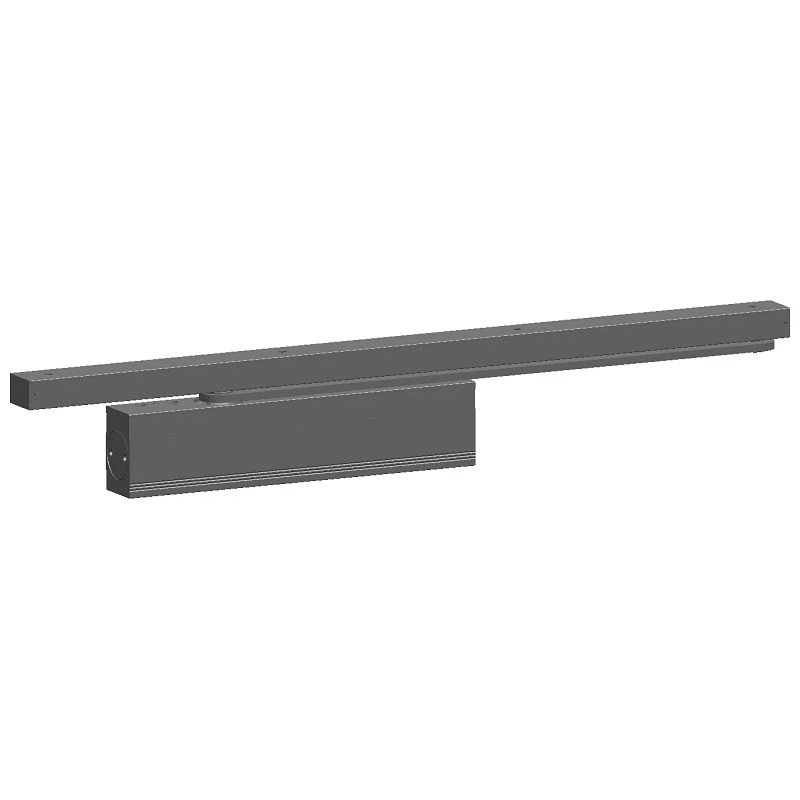

Slide Arm Cam Action Door Closer

Spring Power:

Adjustable Size 2-4

Durability:

100,000 cycles above

Function:

Adjustable Closing speed

Adjustable Latching speed

Adjustable Backcheck

Type:

Embedded

Max. Opening

120 °

Pressure relief valve:

Yes

Mechanism:

Rack & Pinion

Hand of door:

Non handed

Materials of Body:

Aluminum

Materials of guide rail

6061, Steel

and Main Arm:

Materials of Spring :

60Si2Mn

Hold open:

Yes

Delayed Action：

Description:

Yes

Closing speed can be individually adjusted

Hydraulic latching action which accelerates the door shortly before it is closed

Application:

Suitable for interior wood, Glass door and frame

Finish:

Silver, Brown, White,Black, Others upon request.

Leaf width (max.):

1100mm

Leaf weight (max.):

85kgs

Warranty:

5 Years

D90

2-4

20-85KGS

850-1100 mm

Slide track arm
