TS68 Door Closer
Brand Name: DORHAUS, Dorrenhaus
Certification: CE EN1154, ISO9001:2015
Model Number: D803
Minimum Order Quantity: 500sets
Packaging Details: 1set in 1 paper box, 10sets in 1 carton, 42ctns in 1 wooden pallet size: 116*92cm
Delivery Time: 5 weeks
Payment Terms: D/P, L/C, , T/T, Western Union, MoneyGram
Supply Ability: 10,000 sets / month
Send Inquiry
Product Details ofTS68 Door Closer
Detail Information
| Main Keyword: | 180 Degree Industrial Door Closer | Warranty: | 5 year |
| Closing Force: | #2 - 4 | Optional Features: | BC, Hold Open |
| Opening Angle: | Max. 105º For Size 4, 180º For Size 2/3, | Max. Door Weight: | 85kg |
| Temperature Range: | -40℃ To 45℃ | Applicable Width: | 850-1100mm |
| High Light: | top jamb door closer, silent door closer | ||
Product Description
Size Adjusting Residential Door Closer, Hydraulic 180 Degree Door Closer CE Listed
● Closing force size 2 to 4 adjustable by template
● Dorrenhaus - CE - certified | Export since 2011
● Even operation, oil-tight, no abnormal sound

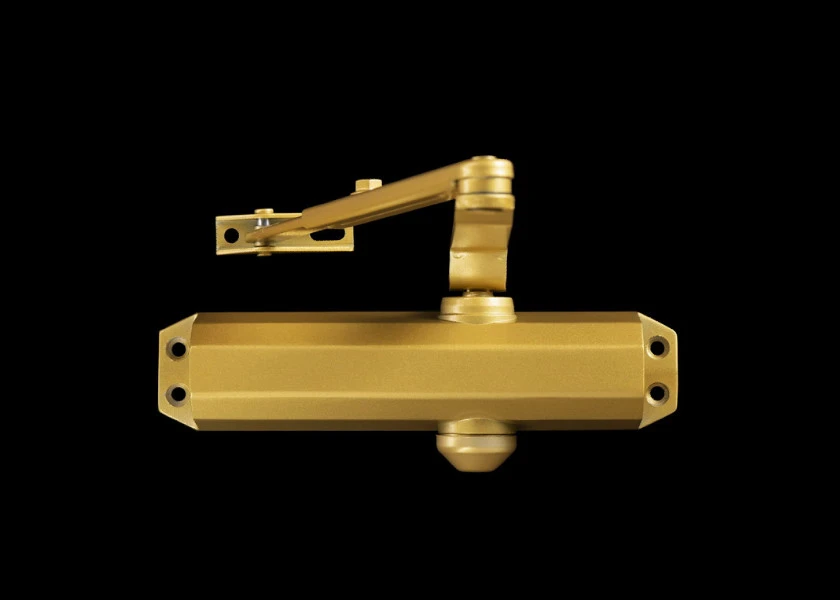

Surface-mounted closer D803 is installed on the surface of the door and frame and is highly visible. They are the more economical for the two options and also the easiest way for installation.
Ω CE listed medium-duty hydraulic residential 180-degree door closer
Ω Precise casting aluminum closer housing with reinforced steel Dorma arm
Ω Closing & latching speed regulated by two separate controlling valves
Ω Adjustable backcheck function and hold open arm is for optional
Ω Fixed spring size 3, adjusting closing force size 2-4 by template and towards of bracket, applicable for max. 1100mm door width or 85kg weight
Ω Usually opening angle between 90º and 105º, max open-angle 180 degree
Ω Design for any standard installation methods, no manual closing required
Ω First i.e. latest BS EN1154 certification in Dec. 2018, 500,000 + life cycle
Ω BS EN1634 (Flammability Testing), fire-rated up to and including 3 hours
► 7 years cooperative vendors of international first-rate door control companies
Finishes - Aluminum, Gold, Brown, White, Bronze, Black
* SOFT, HANDS-FREE CLOSING: let the door finish work, enjoy self-driven closing and latching, maintain quiet and security.
* SPRING THRUST, EASY CLOSING: commercial-level swing arm will not impact opening, meanwhile shut doors gradually to allow for graceful extry and exit
Type | Door Width | Weight Range | Closer Body (LxWxH) | Installation Dimension |
D803 | 850-1100 mm | 25-85kgs | 220*48*45 mm | 202*19 mm |
Closing Force | Door Open Angle | Warranty | Product Certification | Fire Rated Standard |
| size 2-4 | 180º for size 2/3 | 36 months | CE EN1154 | EN 1634 |
