Adjustable Hold Open Door Closer
Brand Name: DORHAUS, Dorrenhaus
Certification: ISO9001:2015
Model Number: D2000T
Minimum Order Quantity: 300 pcs
Packaging Details: 1pc in 1 paper box, 10pcts in carton of 545*305*145mm, 36ctns in 1 wooden pallet size: 116*92cm
Delivery Time: around 35 days
Payment Terms: L/C, D/P, T/T, Western Union, MoneyGram
Supply Ability: 20,000pcs per month
Send Inquiry
Product Details ofAdjustable Hold Open Door Closer
Overview
Dorrenhaus door closer D2025T is suitable for the commercial or residential security door. The closer has double separate valves, adjusting closing and latching speed, and is suitable for both the left and right-hand doors.
Ω Designed for all standard installations including regular arm and top jamb
Ω Adjustable backcheck available, optional hold-open function
Ω High-duty rack and pinion by dual heat-treated, needle bearing
Ω High-strength cast aluminum body with screw thread rocker arm
Ω Suitable for doors weighing 25 - 85kg, max. door width 1100mm
Ω PA bracket optional for parallel arm installation, overhead mounted
Ω EN1634 fire-rated, including 2 hours fire rating
Detail Information
| Primary Keyword: | Hold Open Arm Door Closer | Quality Guarantee: | 5 years |
| Width Range: | 850-1250 Mm | Closing Power: | #2-#5 |
| Function Alternate: | Back Check | Max. Door Weight: | 25-120 Kg |
| Opening Angle: | 120 Degree | Temperature Range: | - 40 To 45 ℃ |
| High Light: | overhead door closer, exterior door closer | ||
Product Description

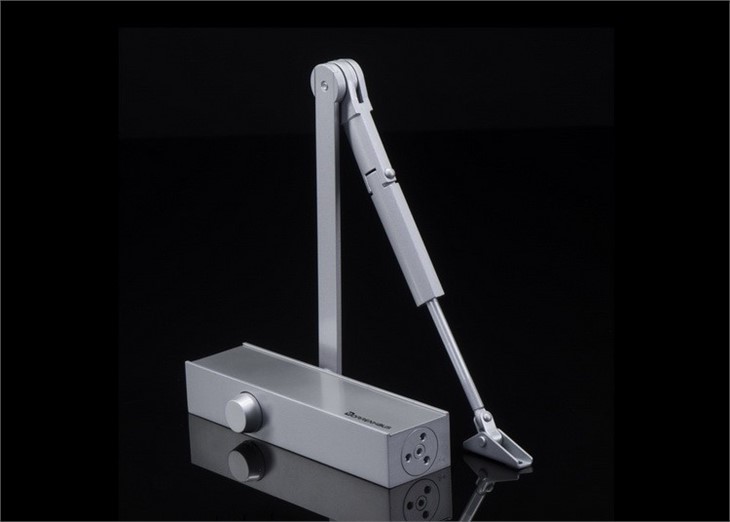

Eurospec Hold Open Arm Door Closer D2000T Adjustable Spring Force Backcheck
Dorrenhaus - 6-year supplier to top worldwide brands
Ω Eurospec medium duty hold open arm door closer with backcheck
Ω Precise casting aluminum closer body with forged steel DT-03 HO arm
Ω Adjustable latching & closing speed regulated by dual adjusting valves Adjustable backcheck optionally
Ω Max. opening angle: hold open-angle can be set between 90º to 120º
Ω No need to close manually, designed for all standard installation
Ω Adjustable spring force #2-4 & #2-5, fixed spring force #4 & #5
Ω Fuchs hydraulic door closer lubricating oil for all climatic operation
Finishes: Silver, Gold, Brown, White, Black, Bronze
► Trusted cooperative manufacturer of universal high-end security enterprises
Model No. | Door Width | Max. Door Weight | Body Size (LxWxH) | Mounting Dimension |
D2024T | 850-1100mm | 25-85kg | 233*60.5*42mm | 50*50*45mm |
| D2025T | 850-1250mm | 25-120kg | 233*60.5*42mm | 50*50*45mm |
| D2004T | 1100mm | 60-85kg | 233*60.5*42mm | 50*50*45mm |
| D2005T | 1250mm | 85-120kg | 233*60.5*42mm | 50*50*45mm |
