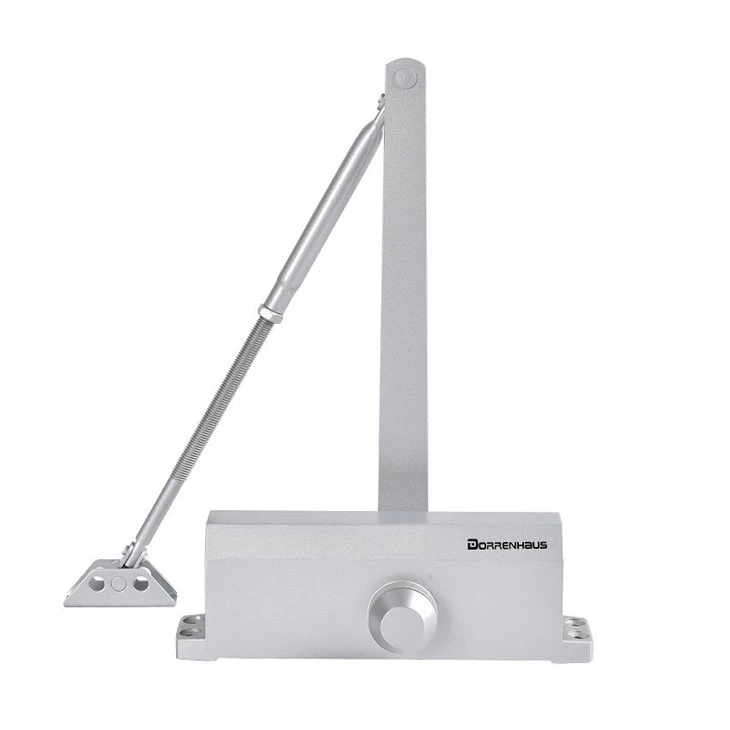

American Light Duty Door Closer

Spring Power:

Fixed EN3/EN6

Durability:

100,000 cycles above

Function:

Adjustable Closing speed

Adjustable Latching speed

Max. Opening:

180 °

Arm Type:

Detachable

Mechanism Type:

Rack&Pinion

Hand of door:

Non handed

Materials of Body:

Die-cast Aluminum

Max Door Width:

1500mm

Max Door Weight:

150Kgs

UL Listed:

CERTIFIRE Certificate NO.R27326

Backcheck:

Yes

Hold Open Optional:

Yes

Delayed Action：

Power Adjustment Method:

NO

By using different templates

Fitting Application:

Regular,Top Jamb,Parallel

Body Construction:

Heat-treated pinion and steel piston

Finish:

Silver, Brown, White,Black, Others upon request.

Warranty:

5 Years

D703

3#

40-65 KGS

950 mm

D706

6#

100-150 KGS

1500mm
