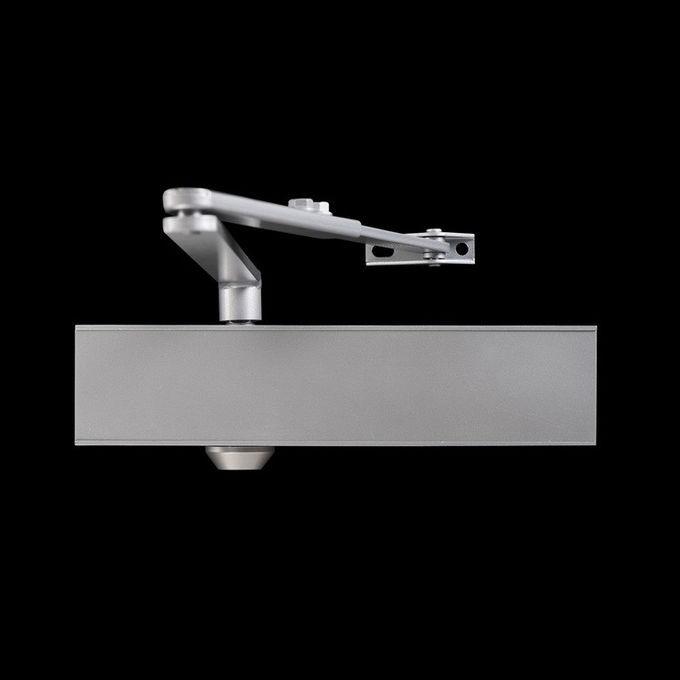

Spring Size Adjustable Door Closer
Brand Name:Dorrenhaus, Dorhaus
Certification:ISO9001:2015
Model Number:D3036
Minimum Order Quantity:500 pcs
Packaging Details:1pc in 1 paper box, 6pcs in carton of 385*330*142mm, 54ctns in 1 wooden pallet Size: 116*92cm
Delivery Time:5-6 weeks
Payment Terms:L/C, D/P, T/T, Western Union, MoneyGram
Supply Ability:5,000 pcs per month Dorma TS83
Send Inquiry
Product Details ofSpring Size Adjustable Door Closer
Years of experience have gone into the development of the D3036 door closer. It can be adjusted to suit almost all types of door. Tested to BS EN1154 by third party certifier IFT from Germany.
Perfect solution for almost any application
Adjustable power to suit door widths up to 1500 mm
With "thinking" back-check
Easy installation
Door Closer Specification Sheet | Comments | |
Product Model: | D3036 | |
Product Type | Overhead Door Closer | |
Power Size | EN3-EN6 | |
Arm Type | Detachable | |
Power Adjustment Method | By power adjustment valve | |
Max Door Width (mm) (Fig 1, Fig 66, Fig 61) | 1500 mm (Fig 1, Fig 66, Fig 61) | |
Max Door Weight (Kgs) (Fig 1, Fig 66, Fig 61) | 150 Kgs (Fig 1, Fig 66, Fig 61) | |
Mechanism Type | Rack & Pinion | |
Adjustable Closing Speed | Yes | |
Back-check | Yes | |
Delayed Action | Optional | |
Adjustable Latch Action | Yes | |
Tested to EN1154 | Yes | |
Tested to EN1634 | Yes | |
CE Marked | Yes | |
EN 1154 Classification | 4 8 3/6 1 1 3 | Fig 1 |
Fig 61 | ||
4 8 2/4 1 1 3 | Fig 66 | |
Maximum Opening Angle | 180 Degrees | Fig 1 |
180 Degrees | Fig 61 | |
180 Degrees | Fig 66 | |
Fitting Application Fig 1, Fig 6, Fig 61 | Fig 1, Fig 66 & 61 | Figure 66 achieved by separate parallel arm bracket offered as optional accessory |
Mechanical Guarantee | 5 Years | |
Available Finishes | Silver, Brown, White,Black | |
Anti-corrosion protection
Features
Benefits for the trade/distributor
● Low inventory costs and reduced stocking requirement thanks to streamlined product range
● Practical and effective solutions to meet special applications thanks to comprehensive choice of accessories
Benefits for the installer/fabricator
● Easy to fix
● Can be tailored to the requirements of the door by simple adjustment
● Just one model for left and right hand doors, and for door and frame / lintel fixing
● Spring strength range EN 3-6 to suit virtually any application
Benefits for the architect/specifier
● Compact closer design and sturdy arm assembly
● Wide range of standard functions supplemented by optional extras
Benefits for the user
● Optimum wall and door protection thanks to "thinking" backcheck
● Closing speed virtually unaffected by temperature fluctuations
● Relatively low opening resistance thanks to high mechanical efficiency
