Euro Style Automatic Door Closer
Durability: 500,000 cycles above
Function: Adjustable Closing speed

STANDARD FEATURES
Certification:CE Marked
Spring Power: Adjustable EN2-4
Durability: 500,000 cycles above
Function: Adjustable Closing speed
Adjustable Latching speed
Hold Open Optional
Backcheck Optional
Arm type: Detachable

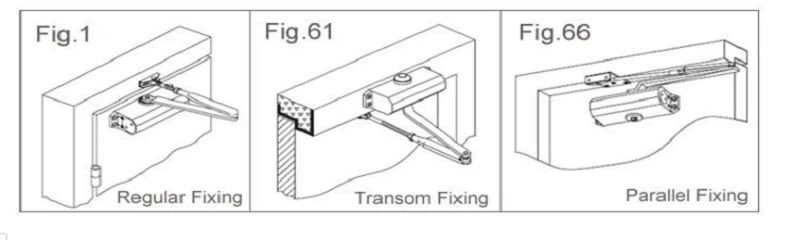

Max. Opening: 180 °(Fig1,Fig66,Fig61)
Fitting Application: Fig1,Fig66,Fig61,Figure 66 achieved by separate parallel arm bracket offered as optional accessory
Mechanism: Rack & Pinion
Materials of Body: Die-cast Aluminum
Materials of Arm : Steel
Delayed Action:NO
Tested to EN1154: Report NO.WIL433078
Tested to EN1634: WF report NO.502521
CE Marked: CERTIFIRE Certificate NO.CF5800
Application: Suitable for wooden door, metal door, and fire rated door
Door width (max.): 1100mm
Door weight (max.): 85KGS
Finish: Silver, Brown, White,Black, Others upon request.
Warranty: 5 Years
AVAILABLE INSTALLATION TYPE:

Model # | Spring power | Recommended Door Weight | RecommendedMax. Door Leaf Width (mm ) | Notes |
D2024 | 2-4# | 60-85 KGS | 1100 mm | Sliding track arm optional |
PRODUCT DIMENSIONS:
