D9016 UL ANSI Grade 1 Extra Heavy Duty Surface Mounted Door Closer
Door Weight:20KG-150KG
Door Width:800-1500mm

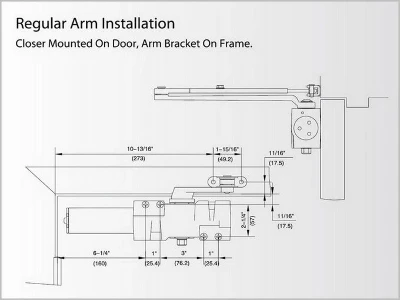

Mounting Dimension:127*57*25.4mm
Place of Origin: Zhejiang, China
Brand Name: Dorrenhaus
Model No: D9016
Certification:UL228&UL10C ANSI156.4
Packing: 1 set/paper box, 4 sets/carton, 32 cartons/wooden pallet (101*72cm)
Payment: T/T, L/C, D/P, Western Union, MoneyGram
Monthly Capacity: 200,000 sets
Cross‑Reference: LCN 4041, Norton 7500, Dorma 8900, Hager 5100, Sargent 291, Corbin Russwin DC3200, Yale 4400
Send Inquiry
Product Details ofD9016 UL ANSI Grade 1 Extra Heavy Duty Surface Mounted Door Closer
Overview
The D9016 Series is Dorrenhaus's most durable surface-mounted heavy-duty closer, designed for the most demanding high-use-and-abuse applications. It meets ANSI/BHMA A156.4 Grade 1 standards and ADA reduced opening force requirements. This closer is cUL listed and UL listed for self-closing doors without hold-open and boasts a 30-year limited warranty.
Comparable to: LCN 4041, LCN 4040, LCN 4040xp, Norton 7500, Dorma 8900, Cal-Royal CR441, Hager 5100, Sargent 291, Dor-O-Matic SC70, Corbin Russwin DC3200 and DC6200, Yale 4400, Lawrence LH8016.
Specification:
|
Size: |
- 1-6 adjustable |
|
Certifications: |
- BHMA Certified ANSI A156.4, adjustable sizes 1-6- ADA compliant ANSI A117.1 Accessibility Code- UL/cUL Listed for up to 3 hours- UL10C Positive Pressure Rated- UL10B Neutral Pressure Rated- 30-year Warranty |
|
Material: |
- Cast Iron- The recommended temperatures for prolonged closer use is between-40° F (-42° C) and 150° F (66° C) |
|
Cover: |
- Full plastic cover - Standard- Plated metal cover - Optional |
|
Springs: |
- One-piece seamless steel spring tube- Double heat-treated steel, tempered springs- Precision machined, heat-treated steel piston |
|
Valves: |
- Adjustable latching and sweep speed valves- Adjustable backcheck valve - Standard- Delayed action valve - Optional- Staked valves - Standard |
|
Handing: |
- Non-Handed |
|
Arms & Brackets: |
- Tri-Pack - Regular, Top Jamb, and Parallel Arms - Standard- 15% power adjustment in the standard arm for regular and top jamb mount |
|
Optional Arms: |
- Hold Open Arm- Extra Heavy Duty Hold Open Stop Arm- Extra Heavy Duty Stop Arm- Extra Heavy Duty Arm- Extra Heavy Duty Hold Open Arm- Extra Heavy Duty Cushion Stop Arm- Extra Heavy Duty Hold Open Cushion Stop Arm |
|
Optional Brackets: |
- Regular Arm Mount - Narrow Top Rail- Parallel Arm Mount - Narrow Top Rail |
|
Fasteners: |
- Self-reaming, self-tapping wood, and machine screws- Sex nuts and bolts |
|
Door Thickness: |
- 1-3/4" (44 mm) - Standard- 1-3/8'' - 2-1/4'' (36 mm - 57 mm) thick door - Optional |
|
Finishes: |
- ALM, BLK, BRZ, DBZ, GOL- Rust inhibiting primer - Standard |
|
Notes: |
- Used on doors with a maximum weight of 330 lbs. |
|
Type |
Door Width | Door Weight |
Body Dim. (LxWxH) |
Mounting Dimension |
|
D9016 |
1500mm | 65-150kg | 281*71*50mm | 127*57*25.4mm |
