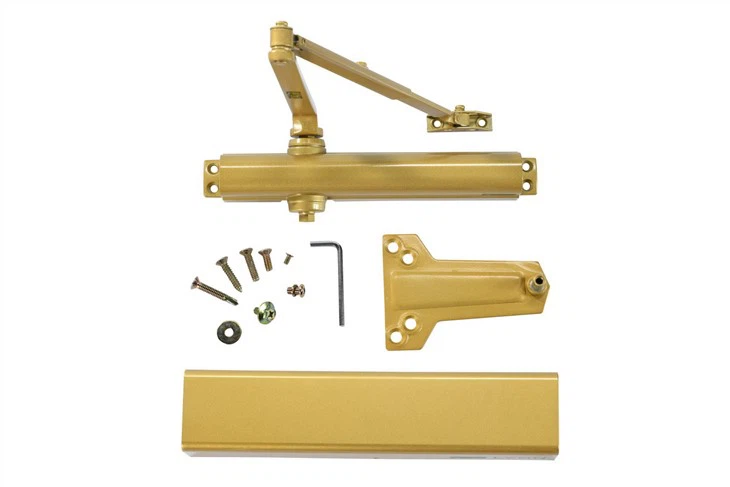

ANSI Grade Heavy Duty Door Closer
Brand Name:Dorrenhaus, DORHAUS
Certification:ANSI/BHMA A154.6 Grade 1, UL228
Model Number:D8016
Minimum Order Quantity:500 pcs
Packaging Details: 1pc in 1 paper box, 6 pcs in carton of 371*310*255mm, 27ctns in 1 wooden pallet size: 115*96cm
Delivery Time:around 30 days
Payment Terms:D/P, L/C, , T/T, Western Union, MoneyGram
Supply Ability:30,000 pcs / month
Compare to: Norton 8501, LCN1461, LawrenceLH816, Yale 3301, Corbin-Rosswin DC3210, Hager 5200, Dorma8600, Stanley D3551, Arrow 5016N.
Send Inquiry
Product Details ofANSI Grade Heavy Duty Door Closer
Overview
The aesthetically driven design of D8016 makes it a top choice for a range of heavy-duty applications; aftermarket replacement, aluminum storefronts, and new construction.
FITS WHERE YOU NEED IT: The surface mount design and tri-pack options, allow you to install this over any high-traffic area while providing complete control.
* Compare to: Norton 8501, LCN 1450, Lawrence LH816, Yale 3301, Corbin-Rosswin DC3210, Hager5200, Dorma 8600, Stanley D3551, Arrow 5016N.
Size: | - 1-6 adjustable |
Certifications: | - BHMA Certified ANSI A156.4, adjustable sizes 1-6- ADA Compliant ANSI A117.1 Accessibility Code- UL/cUL Listed for up to 3 hours- UL10C Positive Pressure Rated- UL10B Neutral Pressure Rated- 30-year Warranty |
Material: | - Aluminum Alloy- The recommended temperatures for prolonged closer use is between -40° F (-42° C) and 150° F (66° C) |
Cover: | - Full plastic cover - Standard- Slimline plastic cover - Optional- Full size plated metal cover - Optional |
Springs: | - Double heat-treated steel, tempered springs - Precision machined, heat-treated steel piston |
Valves: | - Adjustable latching and sweep speed valves- Adjustable backcheck valve - Standard- Delayed action valve - Optional- Staked valves - Standard |
Handing: | - Non-Handed |
Arms & Brackets: | - Tri-Pack - Regular, parallel-arm, and top jamb mount - Standard- 15% power adjustment in the standard arm for regular and top jamb mount |
Optional Arms: | - Hold Open Arm- Extra Heavy Duty Hold Open Stop Arm- Extra Heavy Duty Stop Arm- Extra Heavy Duty Arm- Extra Heavy Duty Hold Open Arm- Extra Heavy Duty Cushion Stop Arm- Extra Heavy Duty Hold Open Cushion Stop Arm |
Fasteners: | - Self-reaming, self-tapping wood, and machine screws- Sex nuts and bolts |
Door Thickness: | - 1-3/4" (44 mm)- 1-3/8'' - 2-1/4'' (36 mm - 57 mm) - Optional |
Finishes: | - ALM, BLK, BRZ, DBZ, GOL- Rust inhibiting primer - Standard |
Notes: | - Used on doors with a maximum weight of 330 lbs. |
Type No. | Applicable Width | Weight Range | Closer Spec. (LxWxH) | Installation Dimension |
D8016 | 800-1500 mm | 20-150 kgs | 325*62*51.5 mm | 304.8*19mm |
