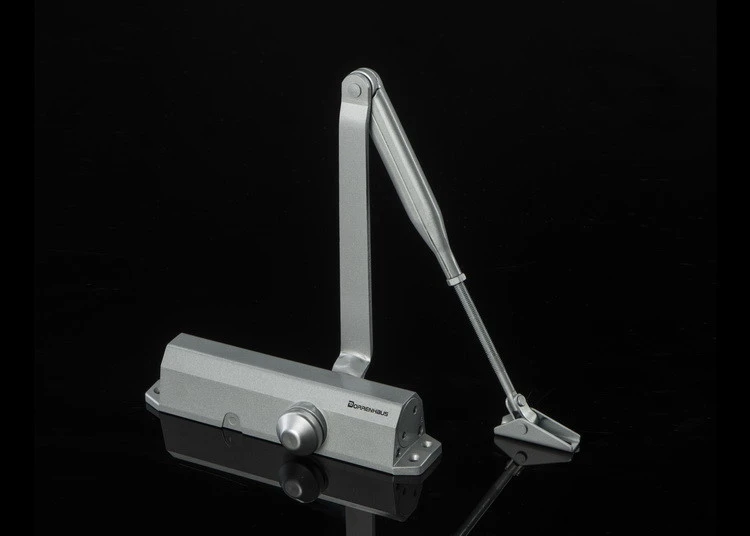

Closing Power Adjustable Door Closer
Brand Name: DORHAUS, Dorrenhaus
Certification: CE EN1154, ISO9001:2015
Model Number: D803
Minimum Order Quantity: 500sets

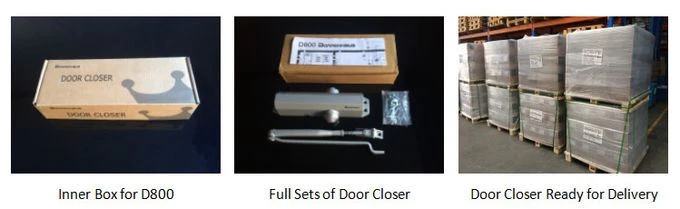

Packaging Details: 1pc in 1 paper box, 10pcs in 1 carton, 42ctns in 1 wooden pallet size: 116*92cm
Delivery Time: 5 weeks
Payment Terms: D/P, L/C, , T/T, Western Union, MoneyGram
Supply Ability: 10,000 sets / month
Cross reference: Dorma TS68
Send Inquiry
Product Details ofClosing Power Adjustable Door Closer
Budget type door closer comparable to Dorma TS68 – the ideal low-cost solution for universal doors.
Door Closer Specification Sheet | Comments | |
Product Model: | D803 | |
Product Type | Overhead Door Closer | |
Power Size | EN2-EN4 | |
Arm Type | Dorma type arm | |
Power Adjustment Method | By changing templates | |
Max Door Width (mm) (Fig 1, Fig 66, Fig 61) | 1100 mm (Fig 1, Fig 66, Fig 61) | |
Max Door Weight (Kgs) (Fig 1, Fig 66, Fig 61) | 85 Kgs (Fig 1, Fig 66, Fig 61) | |
Mechanism Type | Rack & Pinion | |
Adjustable Closing Speed | Yes | |
Back-check | Optional | |
Delayed Action | Optional | |
Adjustable Latch Action | Yes | |
Tested to EN1154 | Yes | |
Tested to EN1634 | Yes | |
CE Marked | Yes | |
EN 1154 Classification | 4 8 3 1 1 3 | Fig 1 |
Fig 61 | ||
4 8 3 1 1 3 | Fig 66 | |
Maximum Opening Angle | 180 Degrees | Fig 1 |
180 Degrees | Fig 61 | |
180 Degrees | Fig 66 | |
Fitting Application Fig 1, Fig 6, Fig 61 | Fig 1, Fig 6 & 61 | Figure 66 achieved by separate parallel arm bracket offered as optional accessory |
Mechanical Guarantee | 5 Years | |

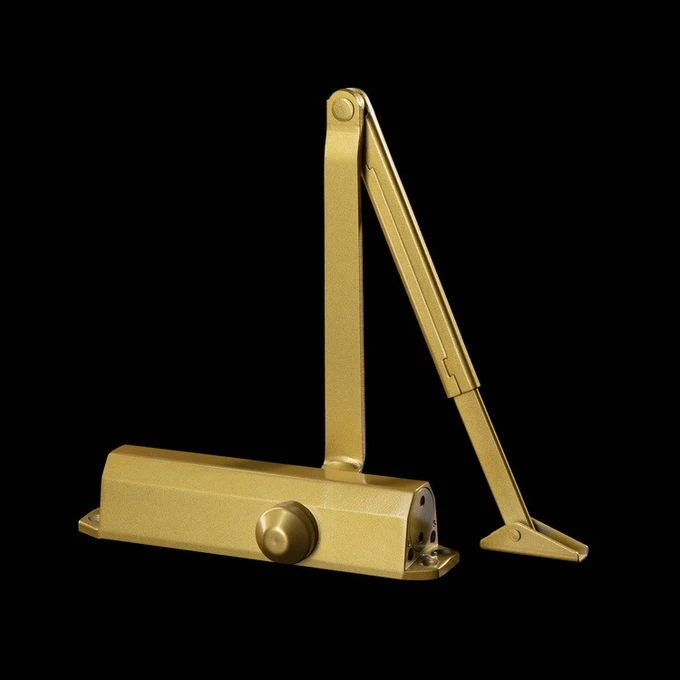

Available Finishes | Silver, Brown, White,Black | |
Benefits for the architects/specifiers
Compact design
Inexpensive, proven reliability
Benefits for the user
Closing cycle largely unaffected by temperature changes

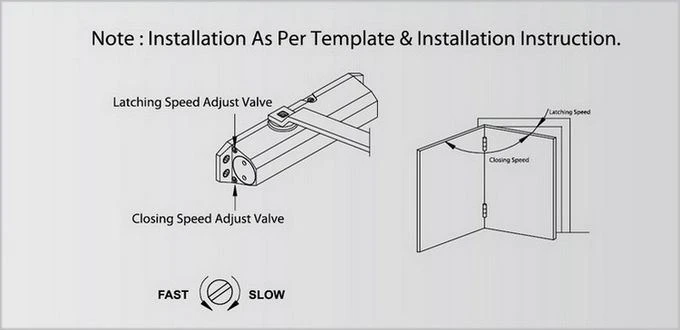

Two valves for optimum closing speed and reliable latching action
► Stable cooperative vendors for renowned door hardware companies Painting - Aluminum, Bronze, White, Gold, Black, Brown
* SPRING THRUST, EASY BACK: the commercial-grade arm will not impact opening, at the same time closing door gradually to allow elegant entrance and exit
* GENTLE, NO NEED TO CLOSE BY HAND: let the door close by itself, enjoy self-acting closing and locking, keep quiet and sureness.
