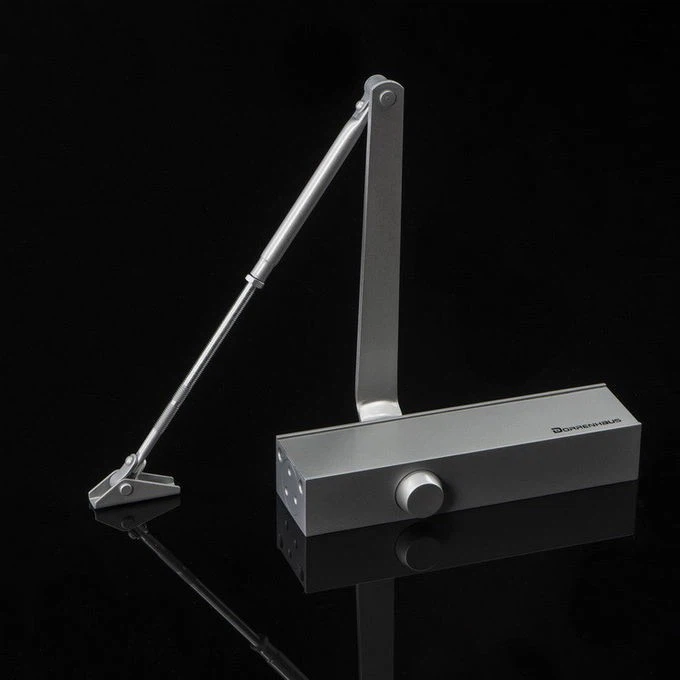

Spring Adjustable Door Closer
Brand Name: Dorrenhaus, Dorhaus
Certification: EN1154, ISO9001:2015
Model Number: D2024
Minimum Order Quantity: 500 pieces
Packaging Details: 1 piece in 1 paper box, 10 pieces in carton of 545*305*145mm, 36ctns in 1 wooden pallet size: 116*92cm
Delivery Time: around 35 days
Payment Terms: L/C, D/P, T/T, Western Union, MoneyGram
Supply Ability: 20,000 pieces / month
Send Inquiry
Product Details ofSpring Adjustable Door Closer
Easy, fast installation and most reliable quality - tested in accordance with EN 1154
The D2024 door closer is a universal solution for doors with a wide range of designs and constructions, particularly in interior areas and for fire and smoke check doors. The extraordinarily flat, compact design allows a smooth installation, and the reliable quality guarantees security.
Detailed Description
● Euro-style, CE marked under Regulation EN1154
● Even running, easy closing, no abnormal sound
● Adjustable closing size 2 to 4 by regulating shaft
Door Closer Specification Sheet | Comments | |
Product Model: | D2024 | |
Product Type | Overhead Door Closer | |
Power Size | EN2/EN3/EN4 | |
Arm Type | Detachable | |
Power Adjustment Method | By power adjustment valve | |
Max Door Width (mm) (Fig 1, Fig 66, Fig 61) | 1100 mm (Fig 1, Fig 66, Fig 61) | |
Max Door Weight (Kgs) (Fig 1, Fig 66, Fig 61) | 80 Kgs (Fig 1, Fig 66, Fig 61) | |
Mechanism Type | Rack & Pinion | |
Adjustable Closing Speed | Yes | |
Backcheck | Yes | |
Delayed Action | No | |
Adjustable Latch Action | Yes | |
Tested to EN1154 | Yes | |
Tested to EN1634 | Yes | |
CE Marked | Yes | |
EN 1154 Classification | 4 8 2/4 1 1 3 | Fig 1 |
Fig 61 | ||
4 8 3 1 1 3 | Fig 66 | |
Maximum Opening Angle | 180 Degrees | Fig 1 |
180 Degrees | Fig 61 | |
180 Degrees | Fig 66 | |
Fitting Application Fig 1, Fig 6, Fig 61 | Fig 1, Fig 66 & 61 | Figure 66 achieved by separate parallel arm bracket offered as an optional accessory |
Mechanical Guarantee | 5 Years | |
Available Finishes | Silver, Brown, White, Black | |
